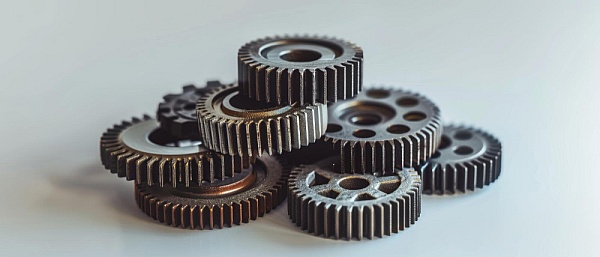

All About Micro Gears: Tiny Components, Huge Precision

The micro gears are miniature mechanical elements that have a strong role in contemporary miniature and precise devices. Micro gears can be used in systems with limited space and typically vary in size between a few millimetres and a few micrometres, allowing motion control, power transfer, and rotation.

The miniature gears play an important role in handling some complex technologies such as micro-electromechanical systems (MEMS), miniature robotics, precision medical equipment, and mini-drive systems. Micro Gears are still gaining relevance in state-of-the-art applications as machine sizes keep shrinking and becoming more efficient.

How Are Micro Gears Manufactured?

It takes very specialised manufacturing methods to make micro gears – conventional gear-cutting processes cannot be used on this scale. Micro gear manufacturers in India use the following processes:

Micro CNC Machining

Advanced micro CNC machines, equipped with ultra-small cutting tools (sometimes as fine as 0.1 mm), are used for high-precision gear cutting. These machines often operate at very high spindle speeds to minimise vibration and ensure a smooth finish.

LIGA / UV-LIGA Process

It is a technique that involves the application of lithography, electroforming, and moulding to construct microscopic gear forms with precise tooth form. Micro-gears, such as the 700 μm in diameter, are manufactured using this technique by companies such as Mimotec.

Micro-EDM (Electrical Discharge Machining)

Micro-EDM is applied in the production of very precise micro-gears, particularly in hard or hard-to-cut materials.

Additive (3D Printing) Manufacturing.

Micro gear geometries: Studies have shown 3D micro gear geometries to be prepared with techniques such as micro-stereolithography using photosensitive resins.

Surface Finishing

Once made, micro gears are frequently subjected to such treatments as electropolishing, PVD or DLC coating or laser polishing to enhance wear resistance and minimise friction.

Looking for micro gear manufacturers near you? Swadeshi Gears is just the platform for you. Contact us today.

Key Challenges in Micro Gear Manufacturing

There is nothing easy in making micro gears. A number of technical and material issues should be addressed:

• Tool Fragility and Wear: The Frailty of cutting tools in micro machining is very small and easy to break. Precise settings will be necessary in order to prevent tool breakage.
• Tight Tolerances: Micro gears require shape and dimension tolerances that are usually in the micron range. Any small variation can cause disturbances to meshing, performance, and lifetime. Material Behaviour Materials such as stainless steel or titanium are difficult to machine at this size because of other factors, such as work hardening or low thermal conductivity.
• Surface Finish: Surface imperfections may increase friction, wear, and noise. Sub-micron finishes of surfaces are essential.
• Burr Formation: Sometimes, it is possible that burrs originate when cutting, and they disrupt the functioning of gears. Deburring, especially required.
• Metrology: The process of measuring micro gears is not simple; optical probing, white-light interferometry, and even X-ray tomography are used to measure the precision.

Micro Gears Manufacturers in India take care of the above-mentioned issues while constructing micro gears.

Materials Used in Micro Gears

The choice of materials to be used in micro gears relies on the use. Materials used are common and are:

• Metals: Nickel and nickel-based alloys (in UV-LIGA) may be utilised due to their strength and resistance to wear.
• High-Performance Plastics: Polymers such as iglidur (igus) are low-friction and are able to be used in lubrication-free systems.
• Silicon: MEMS in particular can make use of silicon to integrate micro gears into micro-fabricated devices.
• Titanium: Occasionally applied where it is required to have a high strength-to-weight ratio, but it is difficult to machine.

Applications of Micro Gears

Micro gears power many advanced technologies thanks to their precision and size. Here are some prominent use cases:

1. Medical Devices and Micro Pumps
   In devices like insulin pumps, micro gears control extremely fine fluid flows precisely and reliably.
2. MEMS (Micro‑Electro‑Mechanical Systems)
   Micro gears act as actuators and motion elements in MEMS, enabling sensors, accelerometers, and micro-mirrors.
3. Precision Robotics
   Tiny robots and micromechanical systems often rely on micro gears for smooth, accurate motion control.
4. Consumer Electronics
   In devices such as cameras (for zoom mechanisms) and watches, micro gears facilitate small but critical movements
5. Aerospace and High-Tech Gearboxes
   Micro gears are used in ultra-miniature gearboxes for aerospace actuators and control systems.

Measuring and Quality Control of Micro Gears

Micro Gears measuring and Quality Control.

• Micro gears: being tiny in size, require high metrology techniques to guarantee performance and accuracy.
• Tactile Measurement: Microprobes and piezoelectric sensors of direct contact measurement.
• Optical Methods: Such technologies as the confocal fluorescence microscopy or the white-light interferometry are useful to obtain accurate surface profiles.
• Standards & Calibration: Standards of micro gear measurement (e.g. module, profile angle) are being developed, which allow consistent quality control.

Advantages of Micro Gears

Micro gears present a variety of different benefits in miniaturised systems:

• Space Efficiency: They significantly shrink the size of gear-based mechanisms, allowing significantly smaller equipment.
• Precision Motion: Micro gears can be manipulated with extreme accuracy of motion and torque because they are very small.
• Low Inertia: Since they are lightweight, they have shorter response times and reduced energy losses.
• Durability and Wear Resistance: Micro gears are made with the appropriate materials that provide it with a long life in even the most demanding micro-mechanical systems.
• Efficiency of Scale: Distributed processes such as UV-LIGA, micro-EDM can be scaled to batch manufacturing to support special purposes, reducing the cost per unit.

Conclusion

Micro Gears are a phenomenally miniature marvel in mechanical engineering, which provides long-lasting accuracy, efficiency, and functionality in a significantly smaller size. In medical equipment, MEMS, in miniature optical systems, in aerospace actuators, these miniature components are transforming the possibilities in mechanical design. Micro gears suppliers in India, like Swadeshi gears, take care of all your gear-related needs

Nevertheless, due to the huge difficulties in the production process, choice of materials, and quality assurance, technological progress is pushing the concept of innovation. With more industries adopting micro gears, the future promises even smaller, more reliable, and more powerful gadgets, all run on the tiny interlocking of the microscopic teeth.
