Sintered bushes are an important component found in various industrial machines to minimize friction during operation of moving parts and industry applications and performance depend on it. These are highly porous metallic inserts. They contain oil, reduce wear and perform well in demanding conditions with low maintenance. Material misapplication, inappropriate applications, overloading, and operating conditions can cause sintered bush bearings to fail prematurely – being aware of the causes of failure is vital.
Why Do Sintered Bushes Develop Problems?
Sintered bushes are formed by pressing and heating powders of metal. The pores of the sintered bushes can harbour lubricants which gradually seep out and provide self-lubricating sintered bushes with lubricating oil while in use. But there are many reasons which can contribute to the decline in their lubrication ability. If the diameter of the bush is loaded excessively or exposed to extreme temperatures, the finish of the shaft is incorrectly machined or the clearance is too high, the lubrication pores can become choked and the oil flow becomes limited.
Common Sintered Bushes Problems and Their Solutions
Sintered Bushing commonly suffers from abnormal wear, overheat, lubrication loss, misalignment, and noise. If we could find out these abnormal conditions we can avoid the industrial facilities damage and normal working.
| Common Problem |
Cause |
Solution |
| Premature Wear |
Excessive load or abrasive particles |
Check load limits and prevent contamination. |
| Overheating |
High speed or insufficient clearance |
Maintain correct clearance and operating limits. |
| Lubrication Failure |
Oil depletion or blocked pores |
Follow recommended lubrication practices. |
| Shaft Misalignment |
Incorrect installation or dimensions |
Verify alignment and fitting tolerances. |
| Noise and Vibration |
Wear, looseness, or poor lubrication |
Inspect the bush, shaft, and lubrication condition. |
Here are some of the common sintered bushes problems:

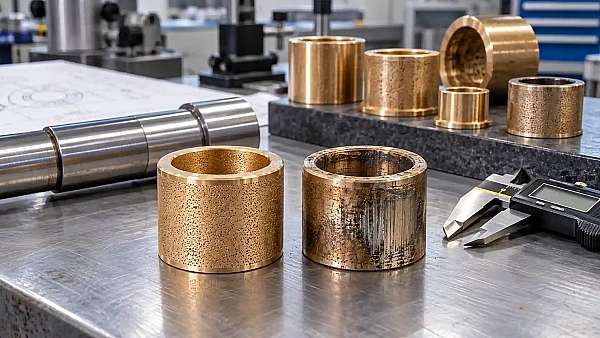

1. Premature Wear and Surface Damage
Sintered bush wear is a result of operating loads that are too high, abrasive contamination or inappropriate shaft conditions. Incorrect clearance can also lead to higher contact pressure and higher friction rates and cause quickly moving surface damage. When possible, select the appropriate sintered bush for the particular application load and speed.
Confirm that the shaft surface finish and hardness are appropriate. Clean around and check sintered bush bearings from time to time for scoring, uneven wear or excessive clearances. Proper sizing and operating conditions make for a long sintered bush bearing life.
2. Overheating and Excessive Friction
Sintered bush overheating, excessive load, running at high speed, too little clearance, too little lubricant. Overheated lubricant, can lead to reduced lubricant performance, and increased wear, which may cause the use of the bush and shaft damage. Always operate industrial bushes within maximum load, maximum speed and maximum temperature.
Before choosing a replacement, determine the operating conditions, and measure the housing bore and shaft dimensions. If the bush is running hot without any abnormal working conditions, switch off when it is safe to do so and check the bush assembly for a cause, rather than replace the bush.
3. Lubrication Failure and Blocked Pores
The oil filled within the porosity of self-lubricating sintered bushes lubricates the bearing. The bearing becomes prone to lubrication problems when the oil can either be removed, is contaminated, has blocked the porosity, or is there a presence of in-compatible cleanser or lubricant.
It is important that sintered bronze bushes are protected from contamination, both in the way they are stored, and in the way they are installed. Use the manufacturer's like Swadeshi Gears advice on ideal working conditions and lubricants, as well as the weather re-oiling is required. Do not always assume that every bush requires lubricating often externally.
4. Shaft Misalignment and Improper Installation
Incorrect sintered bush installation will produce the following damage: high friction, uneven contact, wear and early damage; misalignment of the sintered bush shaft; incorrect size of the housing bore or excessive pressure during the press fitting, the bush will be deformed or the internal clearance of the bush will be increased.
Before installation measurements of the shaft diameter, housing, and tolerance must be made. When using the fitting tools and prescriptions for the installation method provided by the manufacturer should be performed; shaft alignments should be checked and components should turn freely.
5. Unusual Noise and Vibration
Additional sintered bush noise or vibration may also be caused by too much clearance, damage to the shaft, mis-alignment, contamination or lack of lubrication. A slack or damaged bush can allow the shaft to walk, or a wrong shaft surface can produce a contact condition on assembly which is not correct. Check for scoring, play and movement in the assembly.
Check shaft, housing and lubrication condition before replacing. Equipment other than noise. If all these checks check out, then investigate the other parts of equipment. Early diagnosis of sintered bush problems can avoid a system failure or downtime.
How to Prevent Sintered Bushes Failure
Routine maintenance would normally help to significantly reduce sintered bush failure prevention and also solve working efficiency. Here are some of the preventive measures:
- Material choices: The body of the bushing shall be selected in accordance with the work load, temperature, and speed.
- Test load and speed: Don't exceed your equipment.
- Protection from contaminants: Protect the bearing assembly against grit, dirt, water or any other corrosive contaminants.
- Check the quality of the shaft: Make sure you have the right quality of finish, hardness, shaft size and shaft alignment.
- Check sizes: Housing bore, bush sizes and operating clearance should be checked prior to installation.
- How to use it carefully to avoid damaging the porous structure with appropriate tools.
- Monitor: Inspections for the damage and deterioration of heat, visual signs of damage and deterioration of noise and vibration.
- Clean the gear: Use the recommended lubricant. Apply as recommended.
Above mentioned measures assist in the proper functioning and support sintered bush maintenance to prevent any type of premature failure.
Myth: “Self-lubricating Sintered Bushes never require maintenance.
Fact: Although these bushes retain oil within their porous structure, their service life depends on suitable operating conditions, contamination control, and following the manufacturer's maintenance recommendations.”
When Should You Replace Sintered Bushes?
Sintered bush replacement can be indicated when a part is no longer able to support a load or to sustain operating clearances. Typical causes for replacement are found in high internal clearances, scratching or scoring of surface, overheating, mechanical noise or lubrication failures. Seizure or visual deformation are other indications of failed bushings.
Identify the failure mode before fitting a replacement bush, as the new bush can be damaged if the failure mode is not identified. New bushes can fail if shaft size is incorrect, misaligned, contaminated or overloaded. Choose a replacement that satisfies original fit and function dimensions. Timely fitting will help minimise equipment downtime and prevent failure of other parts.
Case Study
An industrial machinery manufacturer experienced a high rate of bush wear caused by misalignment and incorrect clearances. After verifying component dimensions, correcting alignment, and applying the correct installation procedures, the manufacturer hoped to eliminate the unwanted early failure. This emphasizes the need for correct selection and installation of sintered bushes.
Choosing Reliable Sintered Bushes Manufacturers
Experienced sintered bushes manufacturers like Swadeshi Gears offer reliable quality to provide a good quality product. Industrial purchasers should determine the consistency of material, as well as dimensional accuracy and porosity of the bushes. Make sure to consider manufacturing procedures and inspection methods.
Swadeshi Gears is an industrial manufacturer and sintered bushes suppliers in Faridabad and can be considered by buyers for part specifications. To confirm it's the right fit for your application, clients should inquire about load, speed, shaft size, and operating conditions.
Conclusion
Application issues can be reduced through proper application, assembly and operating conditions. Wear, heat, lubrication failure and misalignment are common of most sintered bushes, but they are often corrected by selecting the appropriate type of bush, and the correct installation, maintenance and lubrication.
Always follow proper operating limits. Consult Swadeshi Gears for specific application needs or product options. |
Frequently Asked Questions
Excessive loads, contamination, incorrect clearances, poor installation, and unsuitable operating conditions can cause premature failure.
Not always. Lubrication requirements depend on the bush design, operating conditions, and manufacturer's recommendations.
Excessive clearance, scoring, unusual noise, vibration, and overheating may indicate wear.
Inspection frequency depends on operating conditions, equipment criticality, and the manufacturer's sintered bush maintenance recommendations.
They are used in electric motors, household appliances, industrial machinery, automotive mechanisms, and other rotating equipment.
