How Spline Shaft Ensure Precision in Engineering and Motion Control

In current day engineering and for industrial applications accuracy is of extreme importance. Whether it's an industrial machinery, automation system, automotive component, precision manufacturing component all moving parts should be perfectly aligned and should have an efficient transfer of torque. Spline shafts are used for this purpose.

As most industries demand a high degree of accuracy and reliability, the use of manufacturing spline shafts in India is on the rise. Read the following blog.

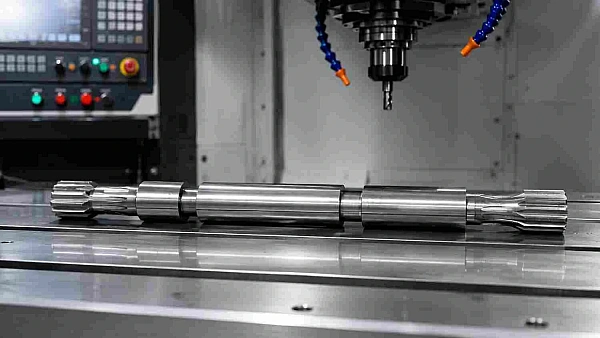

What is a Spline Shaft?

A spline shaft is a kind of shaft which contains teeth or splines machined into it, which mate into splines or holes machined into a component such as a coupling or a hub which allows torque transfer while not losing alignment during translation. Since loads are distributed across several splines on a spline shaft, torque is transmitted to many points on the spline shaft and thus provides better accuracy and increased load capabilities than an average keyed shaft.

Some of the spline shaft uses:

• CNC Machines
• Robotic Systems
• Printing Machines
• Automotive System
• Industrial Machinery
• Packaging Machinery
• Aerospace Applications
• Material Handling Equipment

A spline shaft is generally defined as having a number of grooves or teeth that mate with a similar set of grooves or teeth, so that it is possible to transmit rotation from one shaft to another while at the same time maintaining precisely the relative rotational positions of the two. Compared to other kinds of shafting a spline shaft provides superior load distribution, greatly reduced backlash and very controlled movements.

Always choose reliable spline shaft India exporter who have experience.

Did you know? “Spline shafts were developed to improve torque transmission and alignment in mechanical systems, and they remain one of the most reliable power transmission components used in precision engineering today.”

Types of Spline Shaft

Various types of spline shafts are designed depending on the engineering applications.

Involute Spline Shaft

Generally a very commonly used and found effective product as these offer a good amount of load distributed precisely.

Straight-Sided Spline Shafts

Appropriate for most industries where ease of construction and assembly are required.

Serration Spline Shafts

For use in precision assemblies with fine engagement.

Internal and External Spline Systems

It’s the perfect marriage that produces exceptionally precise mechanical linkages.

Reliable spline shaft supplier in India are expected to provide all these spline configurations.

Fun fact: “Spline shafts were originally developed for high-precision mechanical systems, and their multi-tooth design allows torque to be transmitted more smoothly than traditional keyed shafts, improving both accuracy and durability.”

Why Precision Matters in Motion Control?

Motion control requires exact positioning and the ability to transfer power with high precision and smoothness. Any error can cause issues like vibration, wear and energy dissipation. To perform to their full capability all motion controlled applications need precisely controlled and steady movement and this can be achieved only with precise components like spline shafts where they minimize mechanical errors like backlash and increase the precision of output.

The key precision benefits provided by a spline shaft includes:

• Improved concentricity
• Consistent performance
• Better torque transmission
• Stable and steady alignment
• Rotational backlash reduction

So, industries requiring a precision engineered spline shaft look for companies which value precision machining.

Swadeshi Gears is the leading spline shaft dealer in Faridabad. When talking about localised solutions, Faridabad has many industries that deal in spline shafts. Swadeshi Gears is one of the best industries located in the place.

About Swadeshi Gears

Swadeshi Gears Pvt. Ltd is a renowned manufacturer and supplier of precise engineering industrial gears, situated in Faridabad, India. Headed by Mr. Anurag Dua, the company has more than 25+ years experience in offering durable and economical gear solutions to various industries since 1996. Swadeshi Gears is a leader in small gears, brass gears, worm gears, spline shafts, precision gears and custom-designed gears. Having advanced manufacturing facilities with highly experienced professionals, the company caters in precise cutting of gears and with stringent quality standards. Providing solutions to various industries such as cement, steel, paper and chemical and supplying gears throughout India as well as internationally.

Applications of Spline Shaft

Some of the applications are:

CNC Machines

Precise rotational movement requirement.

Automation

Production automation, industrial automation.

Packaging Machinery

High precision movement and synchronization is often important.

Automotive System

Transmissions, steering systems and drivetrains utilize spline shafts.

Robotics

Robotic joints and actuators have a need for precise control of rotation or movement.

Most of these applications are highly dependent on the precision engineered spline shaft for successful application.

Looking for a trustworthy spline shaft exporter from India then go and visit Swadeshi Gears.

Product Specification

The following table talks about the product specification of spline shaft.

How Does a Spline Shaft Enhance Torque Transmission?

One of the important aspects to consider about a spline shaft is its performance related to the transfer of torque. It doesn't transfer torque like a keyed shaft where the entire load is carried on the two key faces, unlike keyed shaft where power is transferred from one surface to another.

A spline shaft has multiple parallel key faces which share the load thus increasing the capability to transmit more torque without any failure which is important especially in systems where very high torque transfer is needed, for better operational stability.

Industries trying to find a premium quality spline shaft will emphasize on the accuracy of machining and quality of the material as both these factors have a great impact on the final product.

If you are looking for the best spline shaft then Swadeshi Gears is your answer.

Case Study

A manufacturing unit which has previously utilized the standard keyed shaft for a particular operation and changed to precision ground spline shafts from a reliableIndian supplier. One could easily find that the vibration in the machine reduced greatly and thus the productivity of the machine also increased which finally gives better motion accuracy and also decreases maintenance expenses.

Benefits of Conventional Shaft Systems

Some of the benefits are the following:

If you want to buy spline shaft then always choose experience and have knowledge of the market.

Why Choose Swadeshi Gears for Spline Shaft?

Here are some of the reasons:

• They deliver custom and off-the-shelf solutions.
• They have in house manufacturing and on time delivery.
• They have a secure and thoroughly tested packaging system to deliver in top condition.
• They are serving local manufactures and OEMs including resellers throughout the area.

Conclusion

A precision engineered spline shaft plays an important role in today’s high-performance, error sensitive mechanical system. Their ability to accurately transmit torque and their precision alignment qualities makes them an important part of modern machinery used around the world and these are the reasons why manufacturing spline shafts in India are expected to see tremendous growth in the future.
